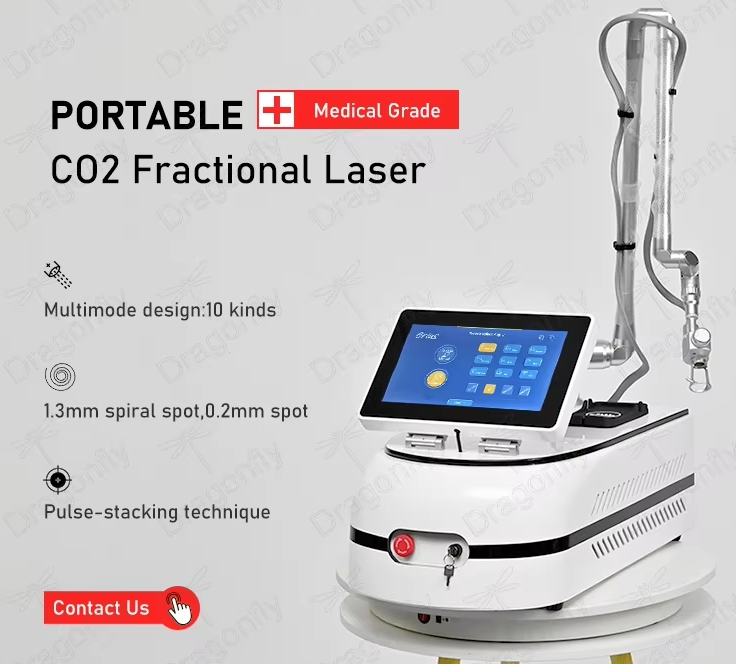

OEM Portable CO2 Fractional Laser Machine for Medical Vaginal Tightening & Scar Removal Beauty Skin Care Equipment Pricelist, Quotes

Product Description

Technical Specifications

Laser type:CO2 fractional laser
Wavelength:10600nm
Guide Arm:7 joint 360° guide arm
Power:70W (max)
Spot diameter:0.2mm and 1.3mm
Pulse duration:0.6ms ~ 10ms
Pulse technology:CW / PW / SP
Aiming light:650nm + 5nm, 6 setting

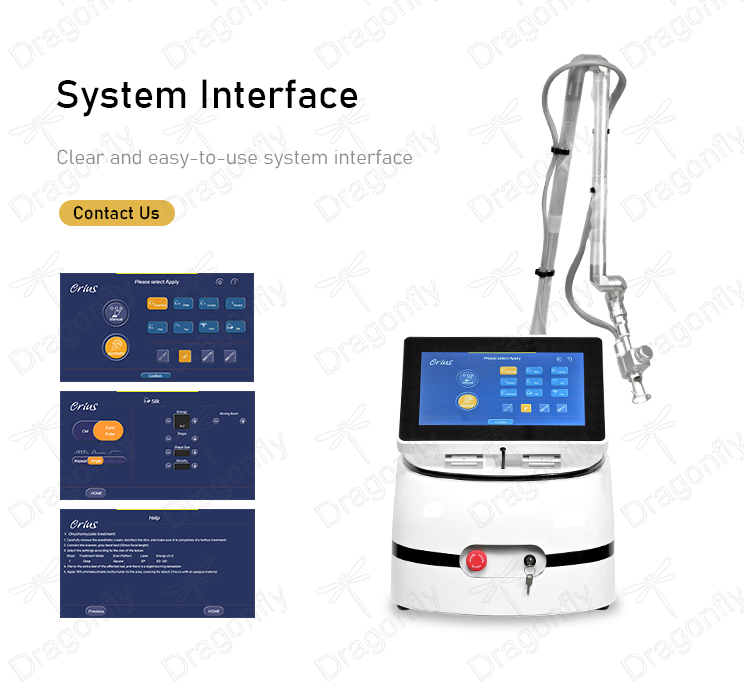

Control panel:LCD color touch capacitor display
Power Supply:110VAC/60HZ: 220V/50Hz
Dimensions:40cm(W) x 65cm(D) x 30cm(H)
Weight:Not more than 30kg

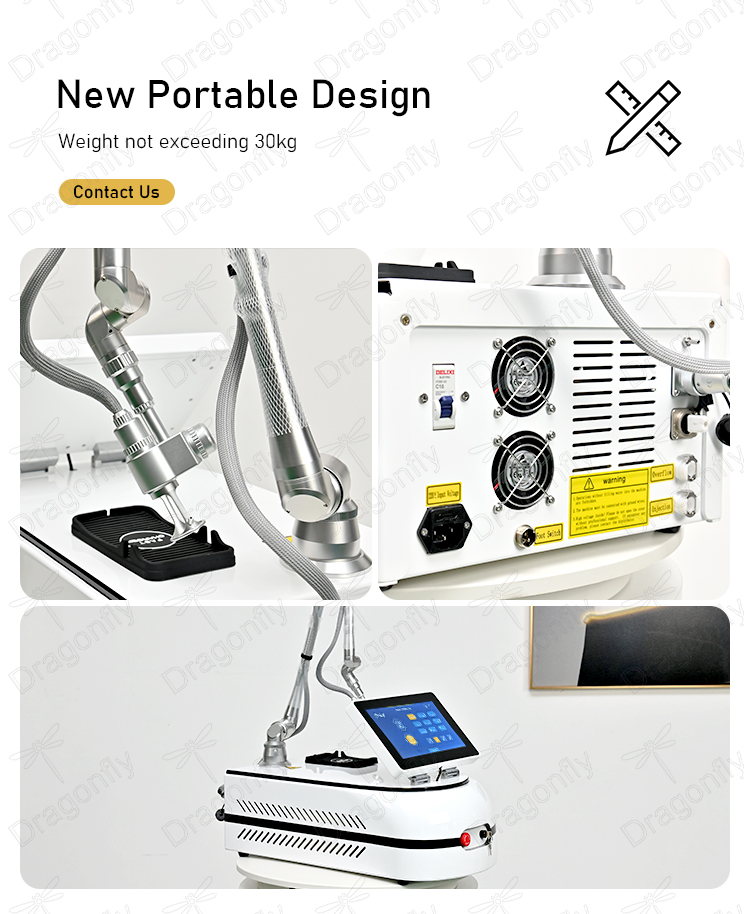

CO2 Laser Device 1
CO2 Laser Device 2
CO2 Laser Device 3

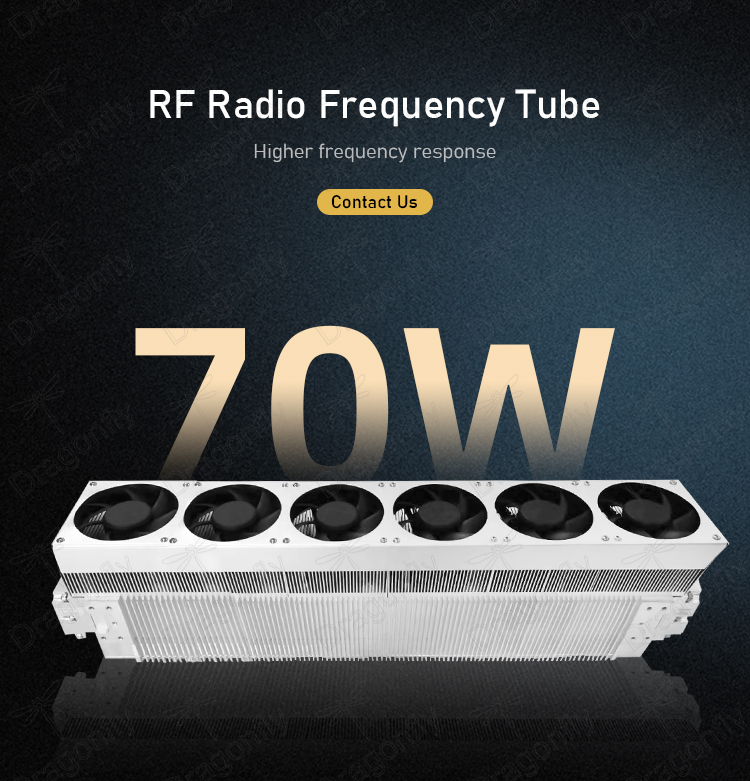

70W RF Tube Technology

RF Tube Tech

This CO2 fractional laser device is equipped with a 70W RF tube to provide more powerful energy support for treatment. The combination of RF technology and CO2 fractional laser can penetrate deep into the skin layer, stimulate collagen regeneration, and enhance the treatment effect.

High energy output: 70W RF tube provides higher energy output to ensure more significant treatment effects.
Dual treatment effect: Combining CO2 fractional laser and RF technology, it helps improve skin texture, lift and tighten, and reduce wrinkles and fine lines.

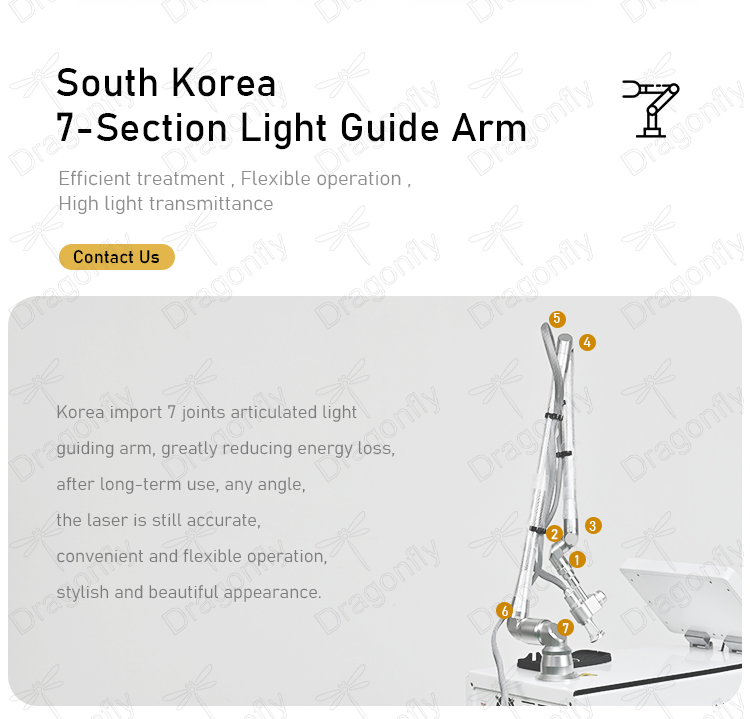

7-Joint Light Guide Arm

Guide Arm

The 7-joint light guide arm imported from South Korea provides ultimate flexibility and precision for the treatment process, ensuring more convenient and precise operation. Here are its main features:

1
Ultimate flexibility: The 7-joint design allows the light guide arm to be freely adjusted to various angles.
2
Precise positioning: Height adjustment and rotation ensure accurate laser beam irradiation.
3
Durability: Made of high-quality materials for a longer service life.
4
Comfort: Streamlined design reduces discomfort during operation.
5
Efficient treatment: Seamless connection provides fast and accurate results.

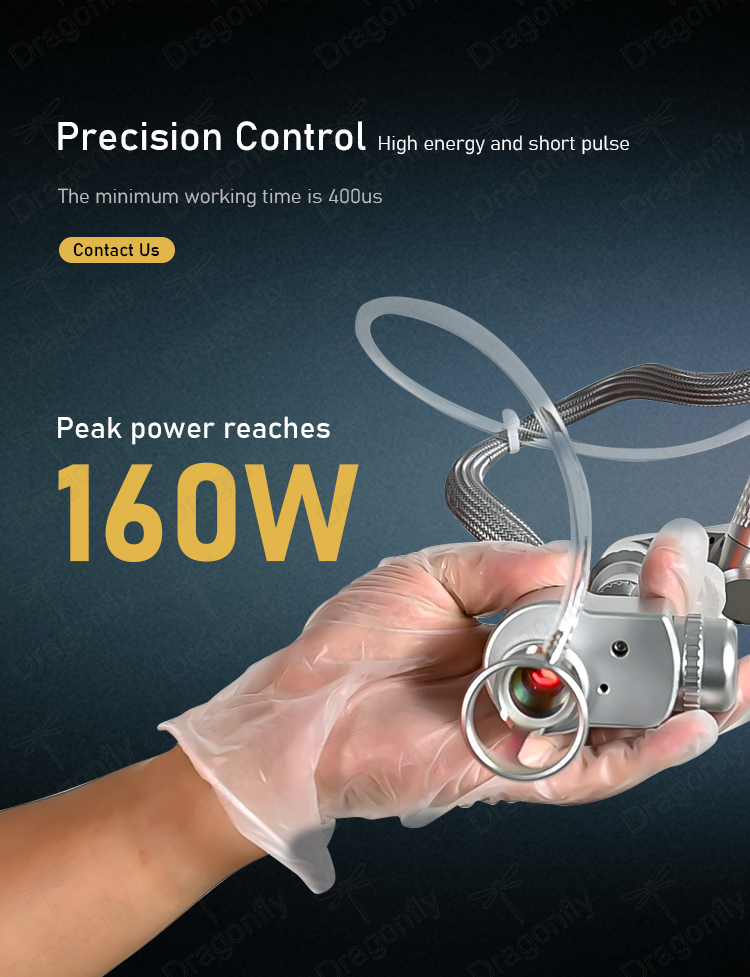

High Energy and Short Pulse

Pulse Tech

Advanced Pulse Control

Minimum working time: 400 microseconds. Precise pulse control ensures efficient and precise treatment effects. High energy output penetrates deep into the skin layer to achieve efficient treatment and improve skin texture and pigmentation. Through the design of short pulses, skin damage is minimized to provide a painless and fast treatment experience.

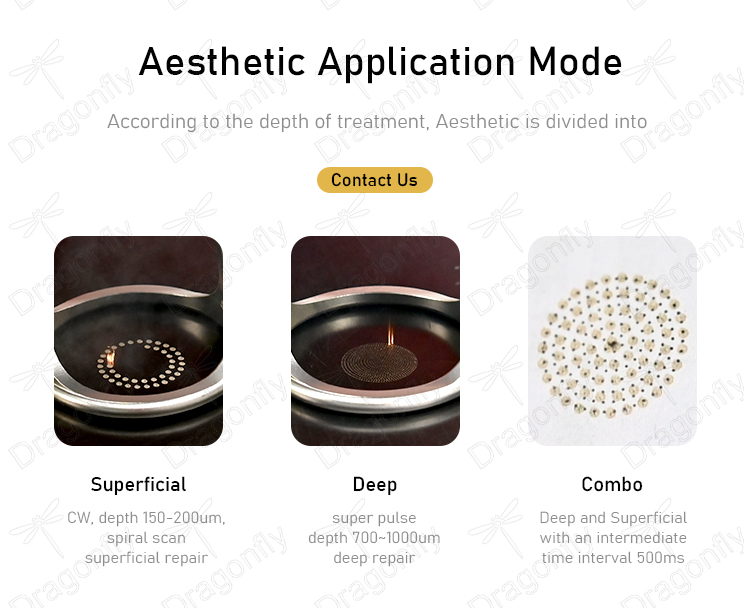

Aesthetic Application Modes

Aesthetic Modes

Treatment Depth Categories

Superficial Treatment: Applicable to skin surface problems such as fine lines, mild spots, large pores, etc.

Mid-Depth Treatment: Targets mid-layer skin problems such as deep wrinkles, obvious spots, and mild scars.

Deep Treatment: Used for deep skin problems such as aging, deep wrinkles, and deep scars to achieve firming and repair effects.

Advanced Treatment Efficiency

Advanced Tech 1
Advanced Tech 2

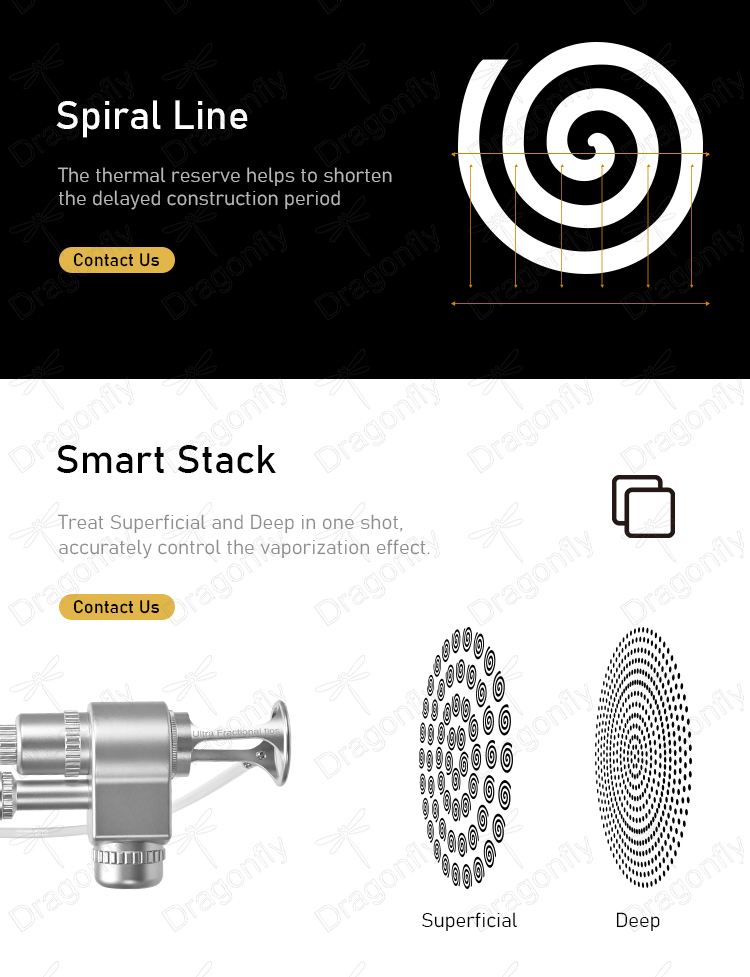

Spiral Line & Smart Stack

Spiral Line: Thermal reserve helps shorten the treatment cycle. The spiral line design outputs laser energy stably through effective heat management, speeding up the process and reducing patient discomfort.

Smart Stack: Treats the shallow and deep layers at the same time, and accurately controls the vaporization effect. Automatically adjusts according to different treatment needs to ensure the optimal treatment depth.

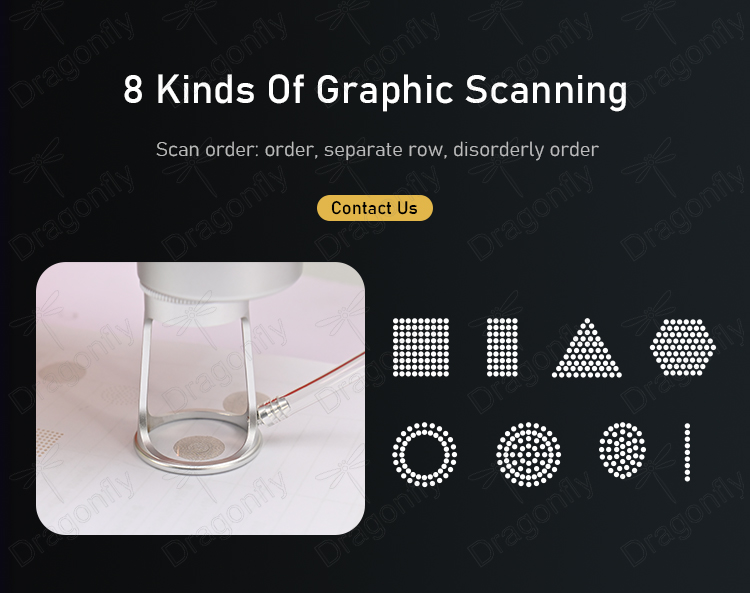

8 Kinds of Graphic Scanning

Scanning Graphics

8 different scanning patterns are provided during the treatment to meet different needs. The scanning sequence includes: sequential, single-line, random arrangement and other modes.

Sequential scanning: Suitable for uniform treatment of large areas.
Single-line scanning: Suitable for concentrated treatment of smaller areas.
Random scanning: Avoids local overheating and ensures skin safety.

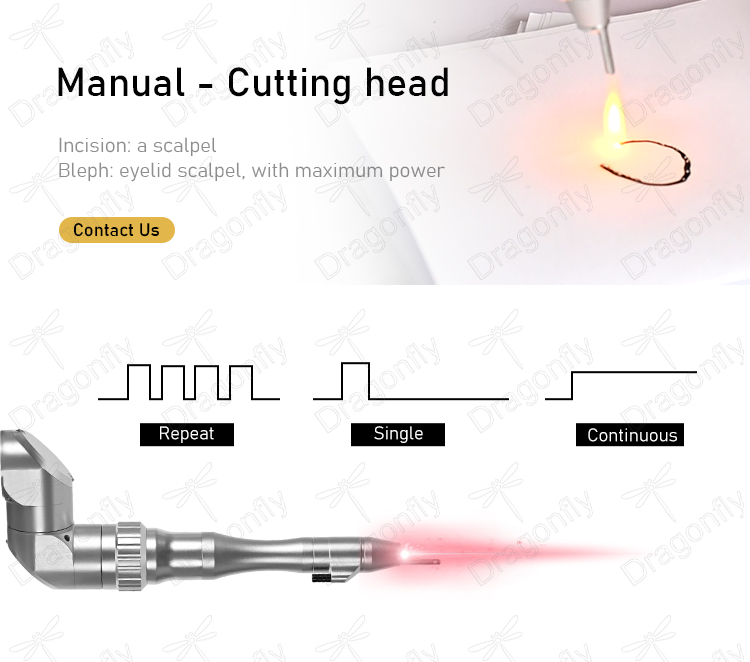

Manual-Cutting & Fem Mode

Manual Cutting Head
Fem Mode Head

Manual-Cutting Head

Includes Incision Mode for maximum control and Blepharoplasty Mode for delicate eyelid treatments. Enables surgical-grade precision while minimizing thermal damage.

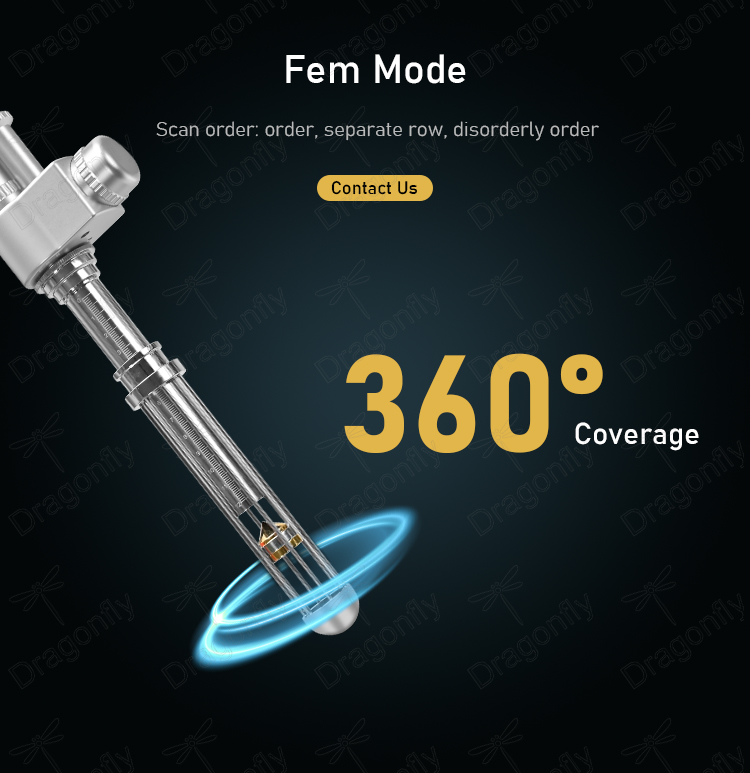

Fem Mode

Designed to provide customizable scanning patterns. Options include Order (structured), Separate Row (precision), and Disorderly Order (irregular areas) for tailored treatment based on individual needs.

Frequently Asked Questions

Q1: What are the primary benefits of the 70W RF tube technology?
The 70W RF tube provides higher and more stable energy output compared to traditional tubes. It allows for deeper penetration and more effective collagen regeneration, leading to better skin tightening and wrinkle reduction results.
Q2: How does the 7-joint light guide arm improve the treatment experience?
The South Korean-imported 7-joint design offers 360° rotation and extreme flexibility. This allows practitioners to reach difficult treatment areas with precision while reducing physical strain, ensuring a more comfortable experience for both the operator and the patient.
Q3: Is the CO2 fractional laser treatment painful?
Thanks to the short pulse technology (minimum 400 microseconds), skin damage is minimized. This design provides a faster, more efficient, and significantly more comfortable treatment experience compared to older laser technologies.
Q4: What is the difference between sequential and random scanning?
Sequential scanning is ideal for large, uniform areas. Random scanning is a safety feature that prevents heat from accumulating in one spot, which protects the skin from overheating and reduces the risk of post-treatment complications.
Q5: Can this device be used for surgical procedures?
Yes, the device includes a Manual-Cutting head with Incision and Blepharoplasty modes. These provide surgical-grade precision for delicate procedures like eyelid surgery while minimizing damage to surrounding tissues.
Q6: What skin conditions can be addressed with the aesthetic application modes?
The device features three depth modes: Superficial (fine lines, pores), Mid-Depth (scars, deep wrinkles), and Deep (severe aging, skin structure repair), making it versatile for a wide range of dermatological needs.
