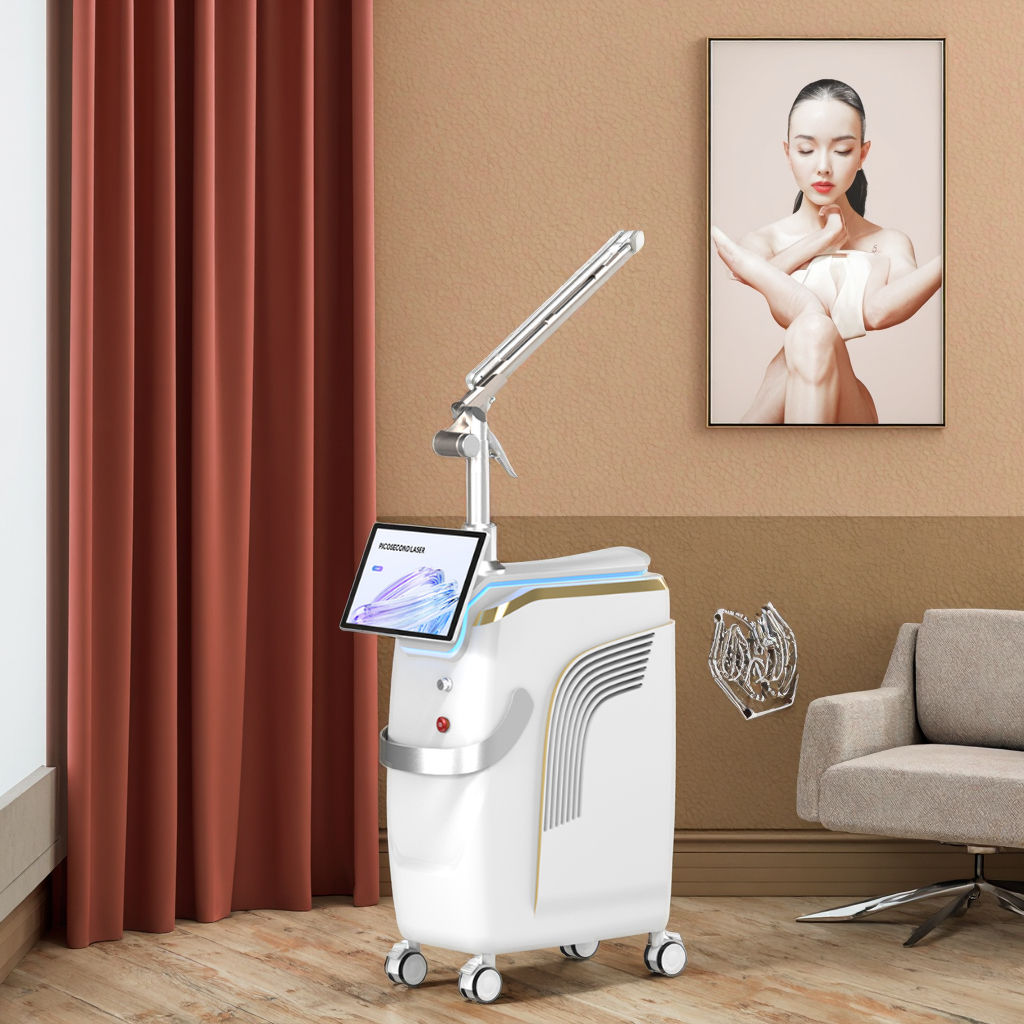

ODM Beauty Salon Laser Machine Picosecond Q Switched 532/1064/755nm for Skin Rejuvenation Tattoo Removal and Pigment Removal Factory, Product
Product Description
What is picosend laser?
The Pico Laser uses ultra-short pulses (one trillionth of a second in length) through beehive lens to hit the melanin with a great pressure, which causes the melanin shatters into tiny dust-like particles. Because the particles are so small, they are more readily absorbed and eliminated by the body. Meanwhile, the shockwave penetrates deeply into the Dermis layer, which stimulate skin collagen to regenerate, which means better clearance of the melanin and less treatments overall. Therefore, the result of removing pigment and improving skin can be achieved.
Brand New Design Concept
Fresh appearance with smooth lines
Lightweight design: 35% smaller and easier to move
Ergonomic push handle with anti-cutting comfortable grip
Silent wheels for easy equipment movement
Fashion light strips for enhanced visual recognition
The Actual Principle of Picosecond Laser Tattoo Removal
The core principle is using ultra-short pulses of light to shatter tattoo ink particles into dust so tiny that the body can remove them easily.
The Revolution: Picosecond Technology
Pulse Duration: Modern advanced lasers fire pulses measured in picoseconds (trillionths of a second). A picosecond is 1,000 times faster than a nanosecond.
True Principle: Photomechanical Shattering. The pulse is so fast it doesn't have time to heat surrounding skin.
Absorption: Laser energy is absorbed by the tattoo ink particle.
Thermoelastic Expansion: Particles effectively vaporize and shatter under stress like microscopic dust.
Comparison with Nanosecond Lasers
Older lasers fired pulses in nanoseconds (ns) primarily through photothermal action.
Longer pulses created residual heat, increasing recovery time and risk of scarring or hypopigmentation.
Triple Wavelength Therapy
Different wavelengths treat different symptoms to ensure comprehensive results:
532nm: For pigmentation, light pigmentation, red, coffee, brown tattoos, and birthmarks.
755nm: Honeycomb design specifically for pigmented lesions.
1064nm: For all spots and black, blue, and green tattoos.
Professional Performance Features
Adjustable Spot Size (2mm-10mm): Users can flexibly adjust the spot size according to specific circumstances to ensure the best results. This improves targeted treatment and reduces unnecessary damage to surrounding tissues.
755nm HoneyComb Probe: Professional for pigment removal and face speckle spot removal.
High-Power Imported Modules: Easily achieve pulse widths of 350ps or shorter. Excellent heat dissipation and energy management systems ensure all-weather treatment stability.
7-Joint Light Guide Arm: Imported from South Korea, ensuring a flexible and efficient treatment experience. Allows accurate irradiation at various angles, reaching hard-to-access areas with high precision.
Technical Specifications
| Product Name | Permanent Tattoo Removal picosecond laser |
| Wavelength | 532nm / 1064nm / 755nm |
| Single pulse energy | 1000mj (1064nm); 800mj (532nm) |
| Pulse width | 550ps |
| Frequency | 1-15HZ |
| Spot Size | 2-10mm adjustable |
| Aim Beam | Red diode laser |
| Beam transmission | 7-joint arm light guide transmitting |
| Wattage | 2000w |
| Voltage | AC220/110v±10%, 50/60HZ |
Frequently Asked Questions
Q1: How does the Picosecond laser work for tattoo removal?
It uses ultra-short picosecond pulses to create intense photomechanical pressure that shatters ink into tiny, dust-like particles, which are then easily cleared by the body's immune system.
Q2: What is the benefit of the 755nm Honeycomb lens?
The Honeycomb lens focuses the laser energy to stimulate collagen regeneration while effectively shattering melanin, making it professional for face speckle and pigment removal.
Q3: Why is the pulse width of 550ps important?
The shorter pulse width ensures that the energy hits the target faster than the skin can conduct heat, minimizing damage to surrounding tissues and reducing the risk of scarring.
Q4: Can this machine treat different tattoo colors?
Yes, with 532nm, 755nm, and 1064nm wavelengths, it can treat a wide range of colors including red, coffee, brown, black, blue, and green.
Q5: How flexible is the treatment for different body areas?
The 7-joint light guide arm and adjustable spot sizes (2mm-10mm) allow for high precision and flexibility, making it easy to treat both large areas and delicate, hard-to-reach spots.
Q6: Is the device easy to move?
Yes, the new design is 35% smaller and lighter, equipped with an ergonomic handle and silent wheels for effortless mobility within the clinic.
